Terious ZSTE225
Technical Information

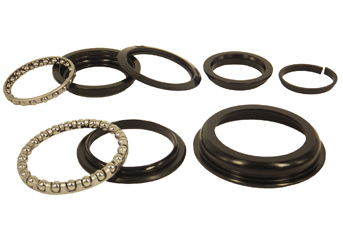

Material | Height | Information | ||
Compression Ring | Resin | Plastic | 8.5mm | ID 28.6mm |
Top Cone | SS41 | Steel | 8.2mm | ID 30.6mm |
Upper Adapter Cup | SS41 | Steel | 7.6mm | Insertion 44.0 +0.1 -0/ 4.3mm depth |
Lower Adapter Cup | SS41 | Steel | 7.8mm | Insertion 56.0 +0.1 -0/ 5.0mm depth |
Crown Cone | SS41 | Steel | 5.0mm | Insertion 39.8 +0 -0.1 |
Upper Ball Retainer | Chorome Balls | Steel | #800 | 5/32"x 22 Balls |
Lower Ball Retainer | Chorome Balls | Steel | #300 | 3/16"x 23 Balls |
Upper Seal Ring | Nylon | Plastic | 3.5mm | |
Lower Seal Ring | Nylon | Plastic | 1.0mm |
