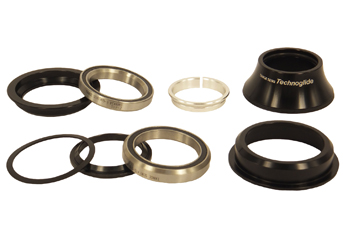

ZS22LT
Zero Stack system
Lightweight and strong duraluminum alloy construction
Tange Seiki original sized 4T5 Cartridge Bearing
Fully Sealed Mechanism
Technical Information
| Material | Height | Information | ||
| Top Cover | A6061-T6 | Light Alloy | 13.7/18.7/23.7mm | ID 25.6mm / Pre-assembled Seal ring |
| Compression Ring | A6061-T6 | Light Alloy | 5.9mm | ID 25.4mm |
| Upper Adapter Cup | A6061-T6 | Light Alloy | 8.2mm | Insertion 41.4 +0.1 -0/ 6.9mm depth |
| Lower Adapter Cup | A6061-T6 | Light Alloy | 10.7mm | Insertion 41.4 +0.1 -0/ 9.2mm depth |
| Crown Cone | SS41 | Steel | 5.1mm | Insertion 30.0 +0 -0.1 |
| Cartridge Bearing x 2 | SUJ2 | Steel | #1501 | Insertion 27.0 +0 -0.1/ 26.4mm +0 -0.1 |
| Lower Seal Ring | Nylon | Plastic | 1.0mm | 38.1/27.2/6.3 |
