Vantage ZSELT
High Impact Resin conical top cover covers lock nut assembly
High-tension steel cups and ball retainers
Fully Sealed Mechanism

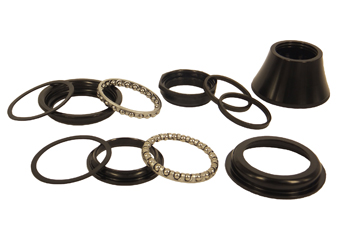

Technical Information


Material | Height | Information | ||
Top Cover | A6061-T6 | Light Alloy | 20.0mm | ID 22.4mm/ Pre-assembled Seal Ring |
Top Lock Nut | SS41 | Steel | 4.4mm | BC1"x24TPI/ 5mm Threading/ 8 flats 32.0mm +0 -0.2 width |
Washer | SPCC | Steel | 2.0mm | Key washer for 3mm slot on fork |
Adjusting Cone | SS41 | Steel | 7.9mm | BC1"x24TPI/ 6.9mm Threading/ 8 flats 32.0mm +0 -0.2 width |
Upper Adapter Cup | SS41 | Steel | 8.0mm | Insertion 41.8 +0.1 -0/ 6.5mm depth |
Lower adapter Cup | SS41 | Steel | 8.0mm | Insertion 41.8 +0.1 -0/ 6.5mm depth |
Crown Cone | SS41 | Steel | 5.3mm | Insertion 27.0 +0 -0.1/ 26.4mm +0 -0.1 |
Lower Seal Ring | Nylon | Plastic | 1.0mm | |
Ball Retainer x 2 | Carbon Steel | Steel | #350 | 5/32" x16 Balls |
