Technoglide DL

The traditional lightest model

Lightweight and strong duraluminum alloy construction

Heat-treated Cr-Mo ball races.

Three sizes available: 1”, 1-1/8” and 1-1/4”

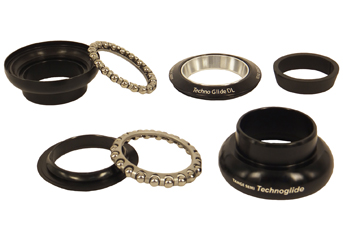

Technical Information


  Material   Height Information
Compression ring A7075-T6 Light Alloy 10.0mm ID 31.8mm
Top Cone SCM415 Cr-Mo 11.5mm ID 33.8 / Press inserted Light Alloy cover
Upper Stationary Cup A7075-T6 Light Alloy 19.5mm Insertion 37.0 +0.1 -0/ 8mm depth
Lower Stationary Cup A7075-T6 Light Alloy 19.0mm Insertion 37.0 +0.1 -0/ 8mm depth
Crown Cone SCM415 Cr-Mo 7.0mm Insertion 33.0 +0 -0.1
Lower Seal Ring Nylon   2.0mm
Ball Retainer x 2 Chorome balls Cr-Mo #900 5/32" x 22 Balls
Color variation Silver, Black, Blue, Red
