Passage DX
Lightweight and strong duraluminum alloy construction
Heat-treated High-tension steel ball races
Triple Sealed Mechanism

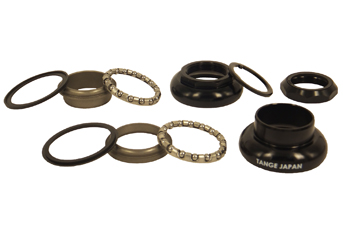

Technical Information

Material | Height | Information | ||
Top Lock Nut | A6061-T6 | Light Alloy | 7.5mm | 8 flats 32mm width, 5mm threading, with water proof seal |
Key Washer | SPCC | Steel | 2.0mm | |
Adjusting Cup | A6061-T6 | Light Alloy | 13.5mm | 8 flats 32mm width, 6.3mm threading |
Upper Stationary Cone | SS41 | Steel | 12.6mm | Insertion 30.0 +0.1 -0/ 30.2 +0.1 -0/ 7mm depth |
Lower Stationary Cup | A6061-T6 | Light Alloy | 21.0mm | Insertion 30.0 +0.1 -0/ 30.2 +0.1 -0/ 10mm depth |
Crown Cone | SS41 | Steel | 5.5mm | Insertion 27.0 +0 -0.1/ 26.4mm +0 -0.1 |
Ball Retainer x2 | Cr-Mo Balls | #300 | 5/32"x16 Balls | |
Seal ring x2 | Nylon | Plastic | ||
Color valiations | Silver, Black, Blue, Gold |
