AW-27
High-tension steel
C.P., Black EDP, Satin Finish available

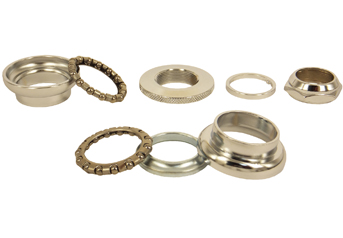

Technical Information

Material | Height | Information | ||
Top Lock Nut | SS41 | Steel | 12.5mm | 6 flats 30mm width, 8mm Threading |
Key Washer | SPCC | Steel | 2.0mm | |
Adjusting Cup | SS41 | Steel | 9.5mm | 9.5mm Threading |
Upper Stationary Cone | SPCC | Steel | 16.5mm | Insertion 32.7mm +0.1 -0/ 8mm depth |
Lower Stationary Cup | SPCC | Steel | 16.5mm | Insertion 32.7mm +0.1 -0/ 8mm depth |
Crown Cone | SS41 | Steel | 5.9mm | Insertion 26.4mm +0 -0.1 |
Ball Retainer x2 | Carbon Steel | Steel | #500 | 3/16"x 15 balls |
Color valiations | CP. Black EDP |
