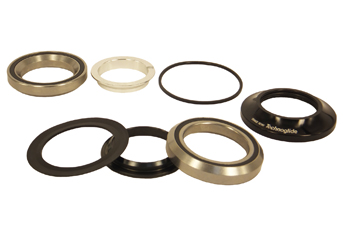

IS23
Fully Integrated system
Lightweight and strong duraluminum alloy construction
Larger sized Cartridge Beraings for durability
Fully Sealed Mechanism
Technical Information


Material | Height | Information | ||
Top Cover | A6061-T6 | Light Alloy | 8.6mm | ID 28.8mm / Pre-assembled Seal ring for water proof |
Compression ring | A6061-T6 | Light Alloy | 6.3mm | ID 28.6mm |
Crown Cone | SS41 | Steel | 6.0mm | Insertion 30.0 +0 -0.1 |
Cartridge Bearing x 2 | SUJ2 | Steel | #1528 | 44.8/31.4/6.3 |
Upper Seal Ring | Rubber | Rubber | O-ring | |
Lower Seal Ring | Rubber | Rubber | 0.7mm |
