Vantgage IS24LT
Light alloy tall conical top cover covers lock nut assembly
Lightweight and strong duraluminum alloy construction
Campy size Cartridge Bearing for durability
Fully Sealed Mechanism

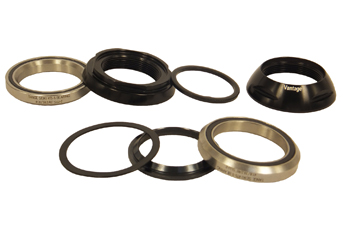

Technical Information


Material | Height | Information | ||
Top Cover | A6061-T6 | Light Alloy | 27.0mm | ID 28.8mm / Pre-assembled Seal Ring |
Top Lock Nut | SS41 | Steel | 4.0mm | BC1-1/8"x26TPI/ 4mm Threading/ 8 flats 36.00mm +0 -0.2 width |
Key Washer | SPCC | Steel | 3.0mm | Key washer for 3mm slot on fork |
Adjusting Cone | SS41 | Steel | 7.9mm | BC1-1/8"x26TPI/ 6.9mm Threading/ 8 flats 36.00mm +0 -0.2 width |
Crown Cone | SS41 | Steel | 4.5mm | Insertion 30.0 +0 -0.1 |
Cartridge Bearing x 2 | SUJ2 | Steel | #1538 | 41.8/30.2/6.3 |
Lower Seal Ring | Nylon | Plastic | 1.0mm |
